NC-Rotary Tables FIBROPLAN®
	Special model
	Next page
	With torque motor drive FIBRODYN. Positioning accuracy up to ±2 second of arc by measuring fault compensation below 1 second of arc,high repeatability less than 0.2 second of arc,extrmely short positioning times ts=0.36 s for 180°.zero backlash and high performance as a result of no gearing,no gear damage in case of tangential collisions,wide variety of standard models - different types and special design for sepcific requirement.

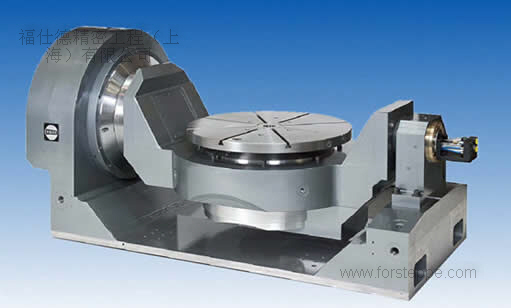

	5-side- machining with FIBRO Rotary-Tilt-Combination A-and B-axis with torque motor and/or conventional drive.Same basic rotary table design-with torque or conventional drive.Custom made according to customers requirment,using the FIBRO standard subassemblies.

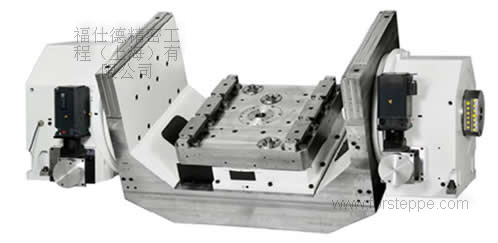

	2-axis NC combination with pallet. receiver,2 driven a-axes(gantry style) driven B-axis,pallet receiver similar to DIN 55201 for pallets 1000×1000mm. Media transmission,7 lines for air and oil max.transported load 6000kg max.mass moment of inertia J=2000kgm2
	Next page

For detailed information please request our FIBRO Catalogue ！
