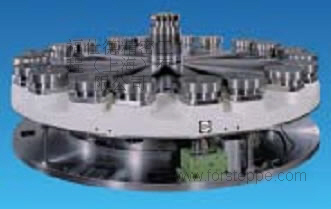

FIBROTAKT Flush-Mount Tables were developed for use on rotary transfer machines. The concept derives from the well-tried FIBROTAKT-series and is based on the principle of combining indexing and locking in a non-lifting system of face gear rings.
Rotary Indexing Tables with planetary units are the "Specialists" when it comes to multi-face machining on Rotary Transfer Machines.Their arrangement details are as varied as are the workpieces and the machining requirements.FIBRO,with their immense experience in the entire field of rotary indexing,have the speciallists,the equipment,and a vast range of batch-manufactured indexing elements to meet the most exacting demands.

Besides many other special advantages,FIBROTAKT Flush-Mount Tables offer the following benefits:

• Housing of uninterrupted round shape,without peripheral protrusions.Underslung drive train.Simple mounting into plain round aperture.
• Great rigidity,by virtue of lockiing into face gear rings of largest possible diameter.
• High indexing accuracy up to ±１″,repeatability 10% of the indexing accuracy.
• Very fast indexing-even with heavy table loads(also refer to technology data).
• Constant monitoring of actual angular table position via rotary resolver-no need for zero-datum reference.
• Version with both horizontal and vertical indexing table.
• A thoroughly tried technology ensures highest service reliability.
• Special designs for specific applications.
