FIBROPLAN NC indexing tables
FIBROTOR with cam drive




Introduction Program Synopsis Application Examples Accessories

EM./EM.NC 型 Strengthened bearing Table top lock Built-in version
EM./ER./EM.NC 型 Vertical version Centring ring and flange
加强轴承 台面液压制动系统

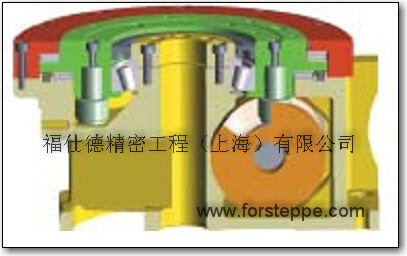

Strengthened table top bearing
To absorb high tilting moments.The indexing table is pre-tensioned without backlash against the housing by a second axial needle roller bearing cage.

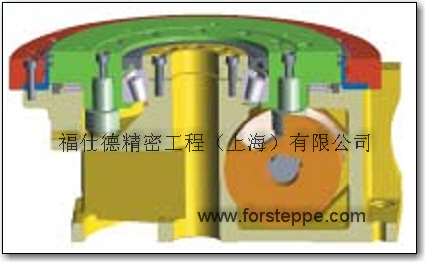

Table top lock
When the indexing table is positioned, it is positively locked to the case with no backlash by an hydraulically actuated clamping disc. This allows high tangential loads
嵌入安装盘 立式

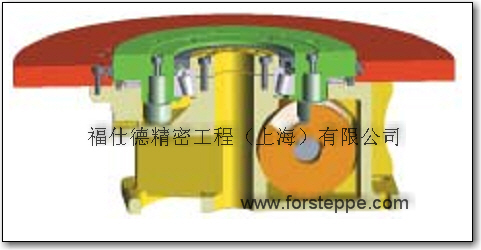

Built-in version
The FIBROTOR EM. is also available as a built-in indexing table.
Vertical version
The FIBROTOR EM can be equipped for vertical operation.

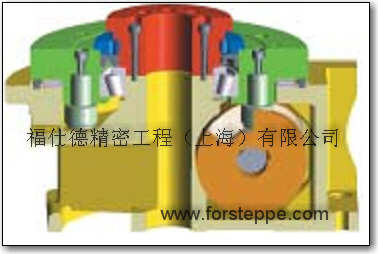

中心环及法兰 Centring ring
The centring ring can be used to mount an additional table top.
Centring flange
The centring flange is used for mounting a "stationary upper table top".
Drilling pattern in centring flange corresponds to standard flange.
Special heights possible (H5)



  顶部


For detailed information please request our FIBRO Catalogue !
